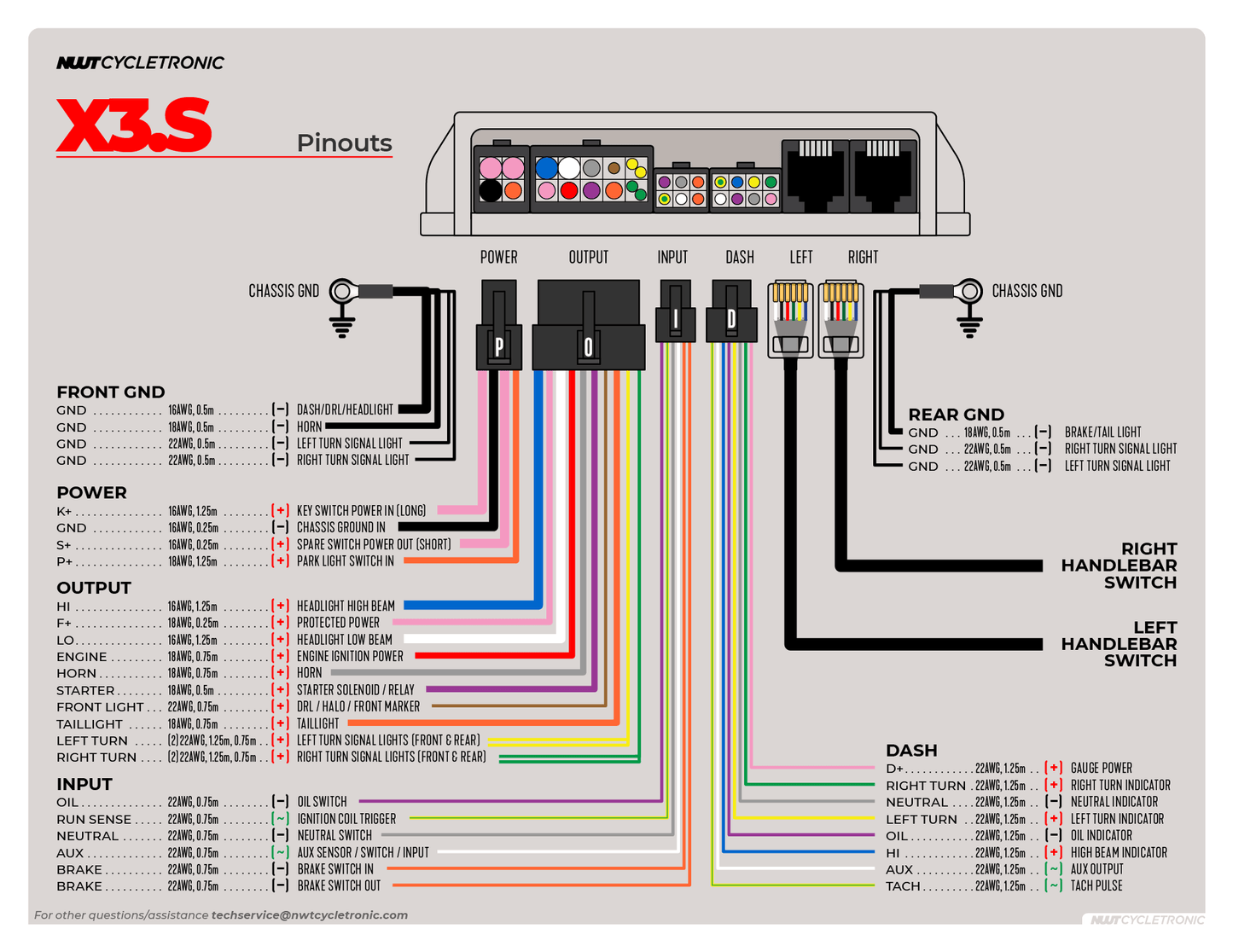

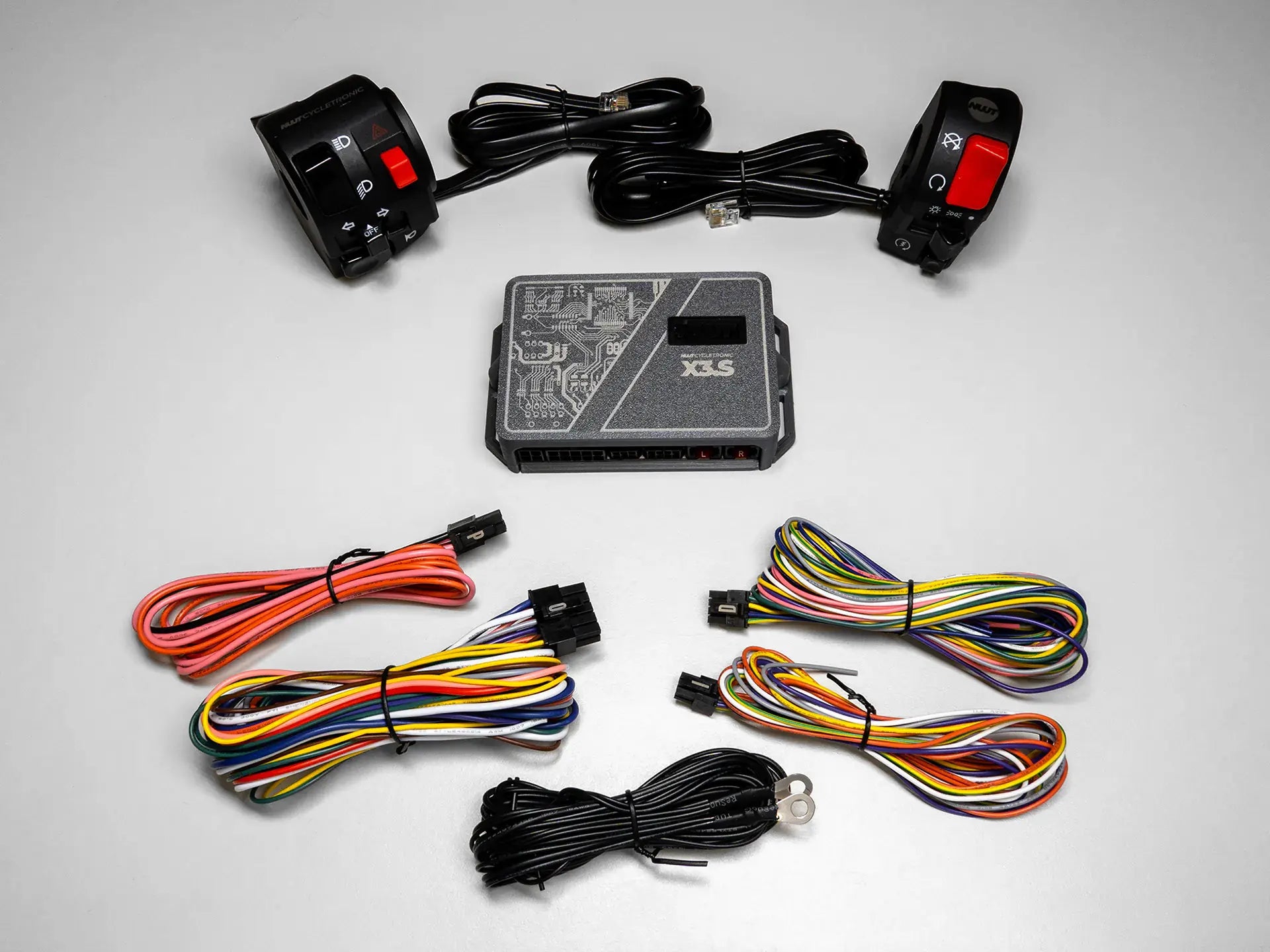

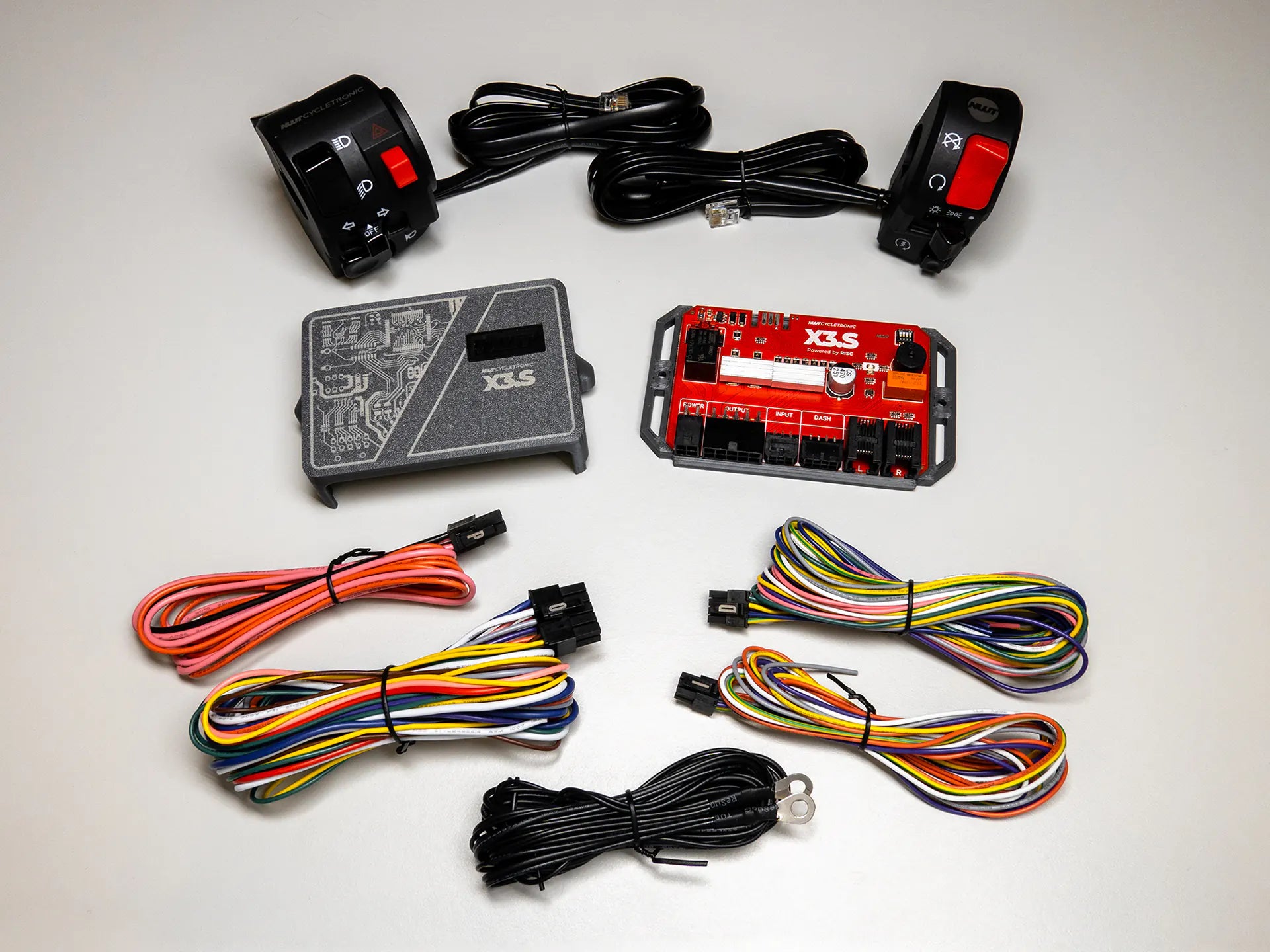

X3.S Motorcycle Control System

A complete motorcycle wiring solution with integrated standard style controls - fast, simple, and effortless.

The X3.S combines the full power of the solid state control system with a complete, plug and play harness wired to standard style handlebar controls when familiarity and simplicity is key.

Like all X3 units, it replaces traditional relays and fuse boxes, but goes further by dramatically reducing install time and complexity. Perfect for high-end builds where performance, simplicity, and speed of installation matter most.

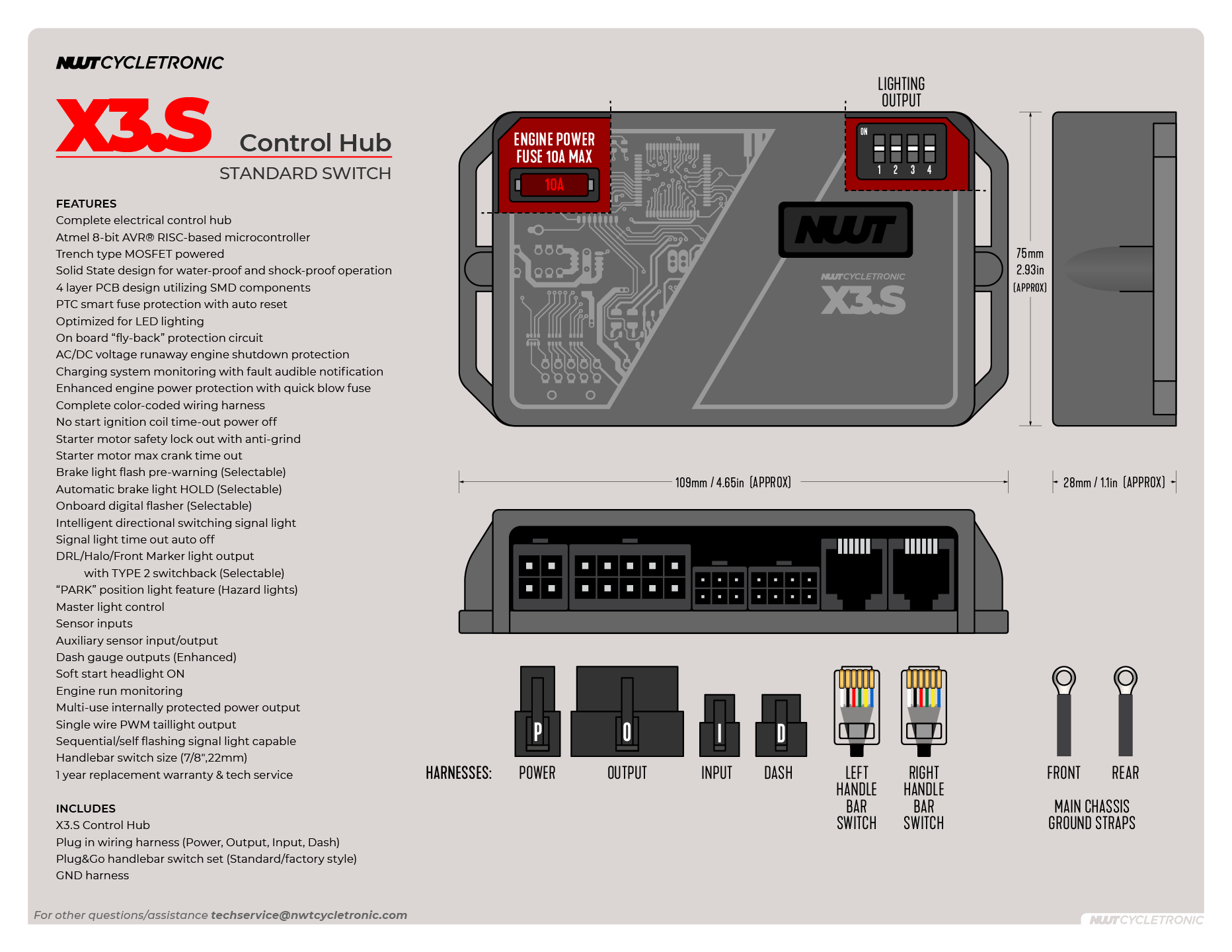

Full feature list:

• Complete electrical control hub
• Atmel 8-bit AVR® RISC-based microcontroller
• Trench type MOSFET powered
• Solid State design for water-proof and shock-proof operation
• 4 layer PCB design utilizing SMD components
• PTC smart fuse protection with auto reset
• Optimized for LED lighting
• On board "fly-back" protection circuit
• AC/DC voltage runaway engine shutdown protection
• Charging system monitoring with fault audible notification
• Enhanced engine power protection with quick blow fuse
• Complete color-coded wiring harness
• No start ignition coil time-out power off
• Starter motor safety lock out with anti-grind
• Starter motor max crank time out
• Brake light flash pre-warning (Selectable)
• Automatic brake light HOLD (Selectable)
• Onboard digital flasher (Selectable)
• Intelligent directional switching signal light
• Signal light time out auto off
• DRL/Halo/Front Marker light output with TYPE 2 switchback (Selectable)
• "PARK" position light feature (Hazard lights)
• Master light control
• Sensor inputs
• Auxiliary sensor input/output
• Dash gauge outputs (Enhanced)
• Soft start headlight ON
• Engine run monitoring
• Multi-use internally protected power output
• Single wire PWM taillight output
• Sequential/self flashing signal light capable
• Plug&Go handlebar switch set (Standard/factory style)
• Handlebar switch size 7/8"(22mm)
• 1 year replacement warranty & tech service

Go to our Downloads section for PDF Install Guides and common install setups.
